Ceiling: Modular System Panels
Modular system for PCs for internal walls, veil and countertops

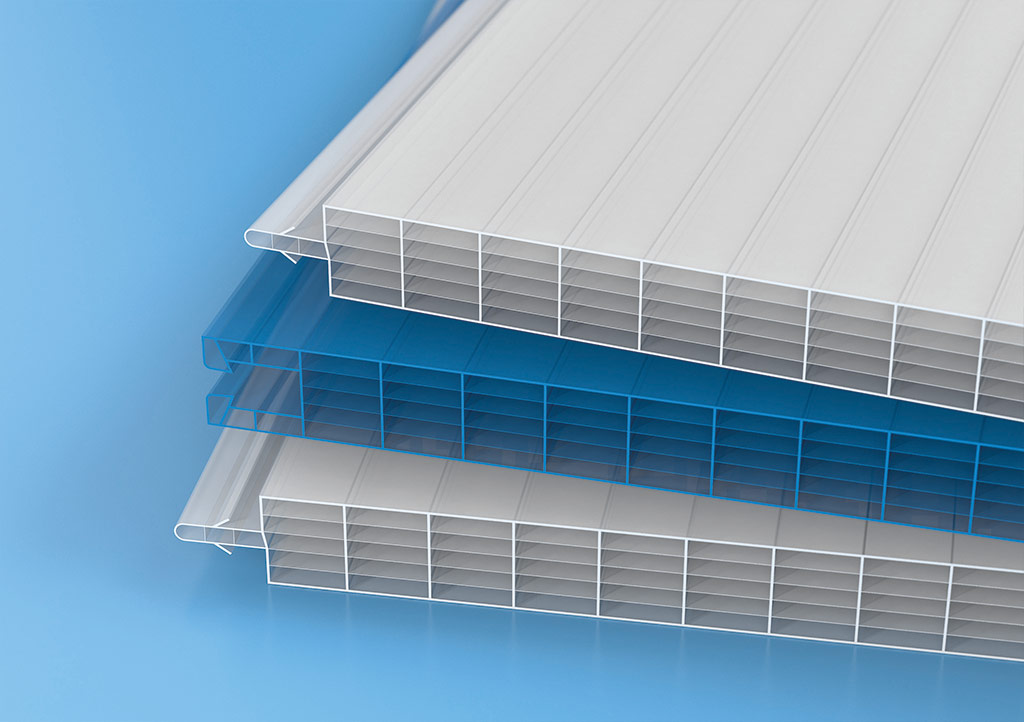

CEILING modular panels are mainly installed as internal walls, false ceilings in industrial buildings. The various thicknesses available (from 10 mm to 40 mm) and the innovative 6-walls structure allow to comply with the thermal transmittance values required by current laws.
The false ceiling made with CEILING, coupled with GRECA, LIGHT or TOPLIGHT sheets, allows to further improve the thermal insulation values. All CEILING panels are supplied without any UV protection because they are installed in solutions where the product isn’t exposed to direct sunlight and snow / wind. However if required, panels can be provided with UV protection on the outside (contact our offices for more information)
Request product datasheetCeiling Articles
| CEILING 500-12-6W | |
|---|---|
| Thickness | 12 mm |
| Module width | 500 mm (± 5 mm) |
| Cell size | 16 mm |
| Length | On request |
All dimensions are subject to production tolerances
| CEILING 500-16-6W | |
|---|---|
| Thickness | 16 mm |
| Module width | 500 mm (± 5 mm) |
| Cell size | 16 mm |
| Length | On request |
All dimensions are subject to production tolerances
| CEILING 500-20-6W | |
|---|---|
| Thickness | 20 mm |
| Module width | 500 mm (± 5 mm) |
| Cell size | 16 mm |
| Length | On request |
All dimensions are subject to production tolerances
| CEILING 500-25-6W | |
|---|---|
| Thickness | 12 mm |
| Module width | 500 mm (± 5 mm) |
| Cell size | 16 mm |
| Length | On request |
All dimensions are subject to production tolerances
| CEILING 500-25 HC | |
|---|---|
| Thickness | 16 mm |
| Module width | 500 mm (± 5 mm) |
| Cell size | 16 mm |
All dimensions are subject to production tolerances
| CEILING 500-30-6W | |
|---|---|
| Thickness | 30 mm |
| Module width | 500 mm (± 5 mm) |
| Cell size | 16 mm |
| Length | On request |
All dimensions are subject to production tolerances
| CEILING 500/40 MonoX | |
|---|---|
| Thickness | 40 mm |
| Module width | 500 mm (± 5 mm) |
| Total width | 525 mm (± 5 mm) |
| Cell size | 21 mm |
| Length | On request |
All dimensions are subject to production tolerances
| CEILING 500/40 XX | |
|---|---|
| Thickness | 40 mm |
| Module width | 500 mm (± 5 mm) |
| Cell size | 26 mm |
| Length | On request |
All dimensions are subject to production tolerances
| CEILING 600/10 3W | |
|---|---|
| Thickness | 10 mm |
| Module width | 600 mm (± 5 mm) |
| Cell size | 11 mm |
All dimensions are subject to production tolerances
