Wall: Modular System Panels
Modular system in PC for windows and facades

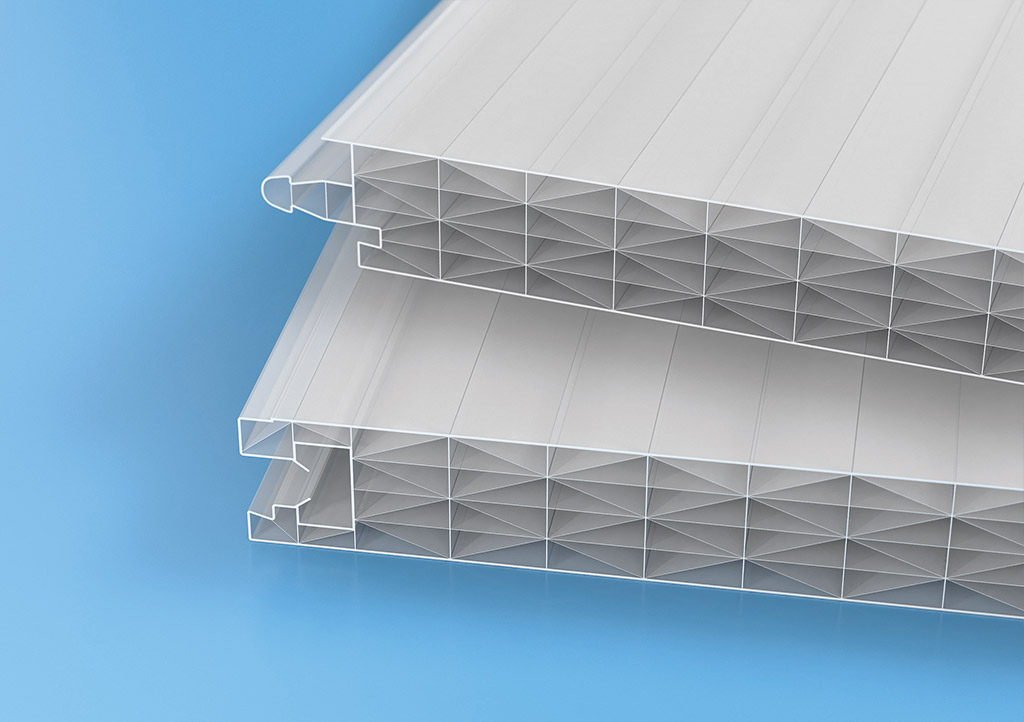

WALL is a tongue&groove modular system, 500 mm width, available in 6-walls structure (thickness 16-20-25-30 mm) and double X, MonoX and 13 walls structure (40 mm). The thermal transmittance values of the different versions allow to meet the actual requirements required by current regulations.
This is the ideal product for the construction of vertical walls in industrial buildings and thanks to the complete range of accessories (aluminum perimeter profiles, gaskets, fixing hooks, …) it enables a simple, fast and technically effective installation.
WALL doesn’t guarantee perfect waterproofness if installed as roof solution.
For installation, watch the video
Request product datasheetWall articles
| WALL 500/40 13W | |
|---|---|
| Thickness | 40 mm |
| Module width | 500 mm (± 5 mm) |
| Total width | 527 mm (± 5 mm) |
| Length | On request |
All dimensions are subject to production tolerances
| WALL 500-16-6W | |
|---|---|
| Thickness | 16 mm |
| Module width | 500 mm (± 5 mm) |
| Cell size | 16 mm |
| Length | On request |
All dimensions are subject to production tolerances
| WALL 500/20 6W | |
|---|---|
| Thickness | 20 mm |
| Module width | 500 mm (± 5 mm) |
| Cell size | 16 mm |
| Length | On request |
All dimensions are subject to production tolerances
| WALL 500-25-6W | |
|---|---|
| Thickness | 25 mm |
| Module width | 500 mm (± 5 mm) |
| Cell size | 16 mm |
| Length | On request |
All dimensions are subject to production tolerances
| WALL 500/30 6W | |
|---|---|
| Thickness | 30 mm |
| Module width | 500 mm (± 5 mm) |
| Cell size | 16 mm |
| Length | On request |
All dimensions are subject to production tolerances
| WALL 500/40 MonoX | |
|---|---|
| Thickness | 40 mm |
| Module width | 500 mm (± 5 mm) |
| Total width | 525 mm (± 5 mm) |
| Cell size | 21 mm |
| Length | On request |
All dimensions are subject to production tolerances
| WALL 500/40 XX “Athermic grey” | |
|---|---|
| Thickness | 40 mm |
| Module width | 500 mm (± 5 mm) |
| Total width | 527 mm (± 5 mm) |
| Cell size | 26 mm |
| Length | On request |
All dimensions are subject to production tolerances
| WALL 500/40 XX | |
|---|---|
| Thickness | 40 mm |
| Module width | 500 mm (± 5 mm) |
| Total width | 527 mm (± 5 mm) |
| Cell size | 26 mm |
| Length | On request |
All dimensions are subject to production tolerances
For colorless tone
Wall: typical installation guide
Complete installation in three simple steps

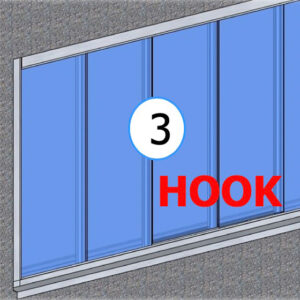

Go on joining the panels as shown before till the end of the vertical glazing. In case of high vertical glazings with a supporting structure behind, remember to install the fixing hooks before joining panels each others.
Applications
Accessories for Wall
Aluminum adhesive tape
Gaskets
Hinges
Alu profiles
Brackets
Thermal cut
Fixing hooks
